Install MITRE Caldera¶

Build the server in an isolated Ubuntu VM, pin the release, protect generated credentials, and confirm the web interface before deploying an agent.

Version-sensitive procedure

MITRE Caldera dependencies and frontend configuration change between releases. Use the official installation guide for your selected release. The older screenshots below are retained to show the original proof of concept, not to override current vendor instructions.

Requirements and route¶

Requirement	Beginner starting point
Server	x86-64 Ubuntu VM, 2 vCPU, 4 GB RAM, 40 GB disk
Runtime	Supported Python and Node.js versions for the pinned release
Network	Isolated lab network; temporary controlled download access
Recovery	Clean OS and working-server snapshots
Access	Local administrator and generated MITRE Caldera red-team credentials

Choose one route:

Online source install: best for learning how the project is assembled.
Container image: best for a repeatable disposable lab.
Offline transfer: use only when you can preserve packages, hashes, recursive submodules, and the exact release together.

Online source installation¶

git clone https://github.com/mitre/caldera.git --recursive --branch <release>
cd caldera
python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
python3 server.py --build

Do not use sudo pip3 install into the system interpreter. Record the release, commit, Python version, Node.js version, package source, and checksums used. When the server reports that its systems are ready, retrieve the generated credentials from conf/local.yml without copying secrets into your report.

Container route¶

The official repository currently documents a published container image. Pin a specific release instead of relying on a moving latest tag in a repeatable lab:

docker run --name caldera-lab -p 8888:8888 ghcr.io/mitre/caldera:<release>

Record volumes, exposed contacts, generated configuration, restart behaviour, and the command used to stop the container gracefully.

Offline installation on Ubuntu 24.04¶

Use this route when the MITRE Caldera server cannot access the internet. Prepare the complete bundle on a matching internet-connected Ubuntu system, verify it, and then transfer it through your approved removable-media process.

Pin and verify before downloading

The commands below preserve the original Ubuntu 24.04 procedure and its tested package versions. Before using them, replace the moving master branch with a supported MITRE Caldera release and confirm its Python, Node.js, Go, Magma, Sandcat, Atomic and package requirements. Record hashes for the source, dependencies and final archive. Do not silently mix newer packages into the preserved bundle.

### Prepare the bundle on an internet-connected machine

Refresh the package lists and create the original dependency structure:

sudo apt-get update
mkdir -p ~/caldera-offline/{vmtools,pip3,chrome,curl,jq,upx,git,nodejs,nodejs/npm,node-modules,magma-dist,go,go-modules}

Download the operating-system tools¶

Download VM tools and their dependencies. Install them on the preparation machine if copy and paste or dynamic display resolution is required:

cd ~/caldera-offline/vmtools
apt-get download \
  libatkmm-1.6-1v5 libcairomm-1.0-1v5 libglibmm-2.4-1t64 \
  libgtkmm-3.0-1t64 libmspack0t64 libpangomm-1.4-1v5 \
  libsigc++-2.0-0v5 libxmlsec1t64 libxmlsec1t64-openssl \
  open-vm-tools open-vm-tools-desktop zerofree
sudo dpkg -i *.deb

Download Python and pip dependencies:

cd ~/caldera-offline/pip3
apt-get download python3-pip python3-setuptools python3-wheel ca-certificates python3 \
  python3-pkg-resources python3-minimal python3.12 libpython3-stdlib \
  openssl debconf cdebconf python3-venv python3-tk python3-doc \
  libdebian-installer4 libtextwrap1 python3.12-doc blt libtk8.6 tk8.6-blt2.5 \
  python3.12-venv libc6 libtcl8.6 libfontconfig1 libx11-6 libxft2 libxss1 \
  libjs-jquery libjs-underscore python3-pip-whl python3-setuptools-whl
sudo dpkg -i python3-minimal_3.12.3-0ubuntu2_amd64.deb
sudo dpkg -i libpython3-stdlib_3.12.3-0ubuntu2_amd64.deb
sudo dpkg -i python3_3.12.3-0ubuntu2_amd64.deb
sudo dpkg -i *.deb
pip3 --version

If APT reports that a download was performed unsandboxed because _apt could not access the destination, run the affected apt-get download command again from the intended directory and confirm that the package exists.

Download Chrome, curl, jq, UPX and Git:

cd ~/caldera-offline/chrome
wget https://dl.google.com/linux/direct/google-chrome-stable_current_amd64.deb
sudo dpkg -i *.deb
google-chrome --version

cd ~/caldera-offline/curl
sudo apt-get download curl libc6 libcurl4t64 zlib1g
sudo dpkg -i *.deb
curl --help

cd ~/caldera-offline/jq
sudo apt-get download jq libc6 libjq1
sudo dpkg -i *.deb
jq --help

cd ~/caldera-offline/upx
wget https://github.com/upx/upx/releases/download/v4.2.4/upx-4.2.4-amd64_linux.tar.xz

cd ~/caldera-offline/git
sudo apt-get download git git-man liberror-perl
sudo dpkg -i *.deb
git --version

Download the build runtimes¶

Download Node.js 22.13.1 and npm 11, matching the original procedure:

cd ~/caldera-offline/nodejs
wget https://nodejs.org/dist/v22.13.1/node-v22.13.1-linux-x64.tar.xz
tar -xvf node-v22.13.1-linux-x64.tar.xz
sudo mv node-v22.13.1-linux-x64 /usr/local/nodejs
echo 'export PATH=/usr/local/nodejs/bin:$PATH' >> ~/.bashrc
source ~/.bashrc
node --version
npm --version

cd ~/caldera-offline/nodejs/npm
wget https://registry.npmjs.org/npm/-/npm-11.0.0.tgz
tar -xzf npm-11.0.0.tgz -C . --strip-components=1
sudo /usr/local/nodejs/bin/node bin/npm-cli.js install -g npm
sudo ln -s /usr/local/nodejs/bin/npm /usr/bin/npm
npm --version

Download Go 1.22.11:

cd ~/caldera-offline/go
wget https://go.dev/dl/go1.22.11.linux-amd64.tar.gz
sudo tar -C /usr/local -xzf go1.22.11.linux-amd64.tar.gz
echo 'export PATH=$PATH:/usr/local/go/bin' >> ~/.bashrc
source ~/.bashrc
go version

Prepare MITRE Caldera and plugin dependencies¶

The original procedure used master; use a pinned supported release for a new build:

cd ~/caldera-offline
git clone https://github.com/mitre/caldera.git --recursive --branch <release>

cd ~/caldera-offline/caldera/plugins/atomic/data
git clone --depth=1 https://github.com/redcanaryco/atomic-red-team.git

cd ~/caldera-offline/caldera/plugins/sandcat/gocat
go mod tidy && go mod download
cp -r ~/go/pkg/mod ~/caldera-offline/go-modules

cd ~/caldera-offline/caldera/plugins/magma
npm install
npm run build
cp -r node_modules ~/caldera-offline/node-modules
cp -r dist ~/caldera-offline/magma-dist

The original Ubuntu 24.04 proof of concept pinned the following MITRE Caldera Python requirements to resolve compatibility issues. Treat this as the preserved tested set, not as a substitute for the requirements of your selected release:

aiohttp-jinja2==1.5.1
aiohttp==3.10.8
aiohttp_session==2.12.0
aiohttp-security==0.4.0
aiohttp-apispec==3.0.0b2
jinja2==3.1.3
pyyaml==6.0.1
cryptography==42.0.3
websockets==11.0.3
Sphinx==7.1.2
sphinx_rtd_theme==1.3.0
myst-parser==2.0.0
marshmallow==3.20.1
dirhash==0.2.1
marshmallow-enum==1.5.1
ldap3==2.9.1
lxml~=4.9.1
reportlab==4.0.4
rich==13.7.0
svglib==1.5.1
Markdown==3.4.4
dnspython==2.4.2
asyncssh==2.14.1
aioftp~=0.20.0
packaging==24.2
croniter~=3.0.3
pyopenssl
docker

Download both production and development Python dependencies, then package the entire offline tree:

mkdir ~/caldera-offline/caldera/python_deps
pip3 download -r ~/caldera-offline/caldera/requirements-dev.txt --dest ~/caldera-offline/caldera/python_deps
pip3 download -r ~/caldera-offline/caldera/requirements.txt --dest ~/caldera-offline/caldera/python_deps

cd ~/caldera-offline
tar -czvf caldera-offline.tar.gz *
sha256sum caldera-offline.tar.gz > caldera-offline.tar.gz.sha256

Transfer the archive and checksum to the air-gapped Ubuntu VM using the approved removable-media process.

Restore the bundle in the air-gapped environment¶

Verify the archive before extracting it:

sha256sum -c caldera-offline.tar.gz.sha256
mkdir ~/caldera-offline
tar -xzvf caldera-offline.tar.gz -C ~/caldera-offline

Install Python/pip, Chrome, jq, curl and UPX:

cd ~/caldera-offline/pip3
sudo dpkg -i python3-minimal_3.12.3-0ubuntu2_amd64.deb
sudo dpkg -i libpython3-stdlib_3.12.3-0ubuntu2_amd64.deb
sudo dpkg -i python3_3.12.3-0ubuntu2_amd64.deb
sudo dpkg -i *.deb
pip3 --version

cd ~/caldera-offline/chrome && sudo dpkg -i *.deb && google-chrome --version
cd ~/caldera-offline/jq && sudo dpkg -i *.deb && jq --help
cd ~/caldera-offline/curl && sudo dpkg -i *.deb && curl --help

cd ~/caldera-offline/upx
tar -xvf upx-4.2.4-amd64_linux.tar.xz
sudo mv upx-4.2.4-amd64_linux/upx /usr/local/bin/
upx --version

Restore Node.js, npm and Go:

cd ~/caldera-offline/nodejs
tar -xvf node-v22.13.1-linux-x64.tar.xz
sudo mv node-v22.13.1-linux-x64 /usr/local/nodejs
echo 'export PATH=/usr/local/nodejs/bin:$PATH' >> ~/.bashrc
source ~/.bashrc
node --version

cd ~/caldera-offline/nodejs/npm
tar -xzf npm-11.0.0.tgz -C . --strip-components=1
sudo /usr/local/nodejs/bin/node bin/npm-cli.js install -g --cache ~/caldera-offline/nodejs/npm-cache --no-audit --no-fund
sudo ln -s /usr/local/nodejs/bin/npm /usr/bin/npm
npm --version

cd ~/caldera-offline/go
sudo tar -C /usr/local -xzf go1.22.11.linux-amd64.tar.gz
echo 'export PATH=$PATH:/usr/local/go/bin' >> ~/.bashrc
source ~/.bashrc
go version

Restore Sandcat and Magma dependencies, then install the Python packages without contacting an online index:

mkdir -p ~/go/pkg
cp -r ~/caldera-offline/go-modules/* ~/go/pkg/mod

cd ~/caldera-offline/caldera/plugins/magma
cp -r ~/caldera-offline/node-modules node_modules
cp -r ~/caldera-offline/magma-dist dist

cd ~/caldera-offline/caldera
pip3 install -r requirements-dev.txt --no-index --find-links=./python_deps --break-system-packages
pip3 install -r requirements.txt --no-index --find-links=./python_deps --break-system-packages

If a Python script is installed in /home/cyber/.local/bin but that directory is not on PATH, add it and reload the shell:

echo 'export PATH="$PATH:/home/cyber/.local/bin"' >> ~/.bashrc
source ~/.bashrc

Start and configure the offline server¶

Launch MITRE Caldera and wait for All systems ready:

cd ~/caldera-offline/caldera
python3 server.py --build --log DEBUG

MITRE Caldera generates the red and blue usernames, passwords and API tokens in conf/local.yml. Do not copy those secrets into screenshots or lab reports.

For the original proof of concept, remote access required the following server values after stopping MITRE Caldera with ++ctrl+c++:

app.contact.http: http://SERVER-IP:8888
app.frontend.api_base_url: http://SERVER-IP:8888

The original Magma frontend also used:

VITE_CALDERA_URL=http://SERVER-IP:8888

Current releases may not require that environment variable. Apply it only when the documentation for your pinned release does. Rebuild after a required configuration change:

cd ~/caldera-offline/caldera
python3 server.py --build --fresh --log DEBUG

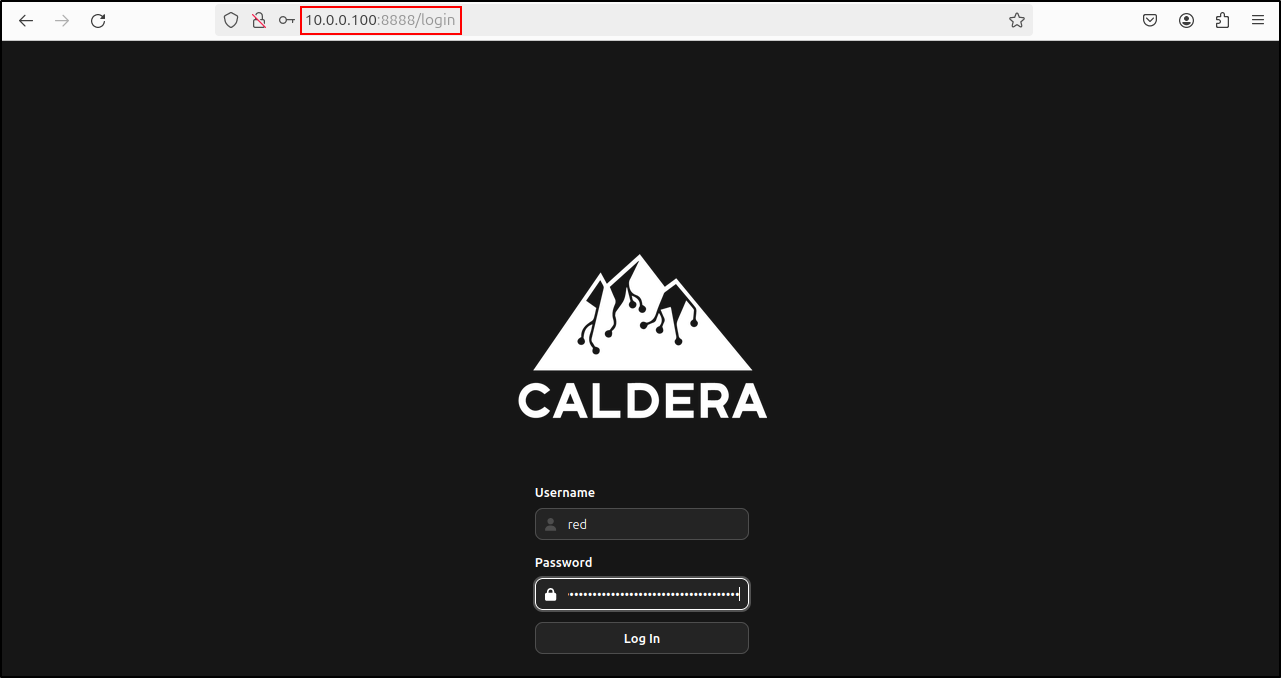

Finally, confirm that the local server and one authorised Ubuntu management VM can open http://SERVER-IP:8888 and authenticate with the generated red-team credentials. Continue to the interface checkpoint below.

Verify the interface¶

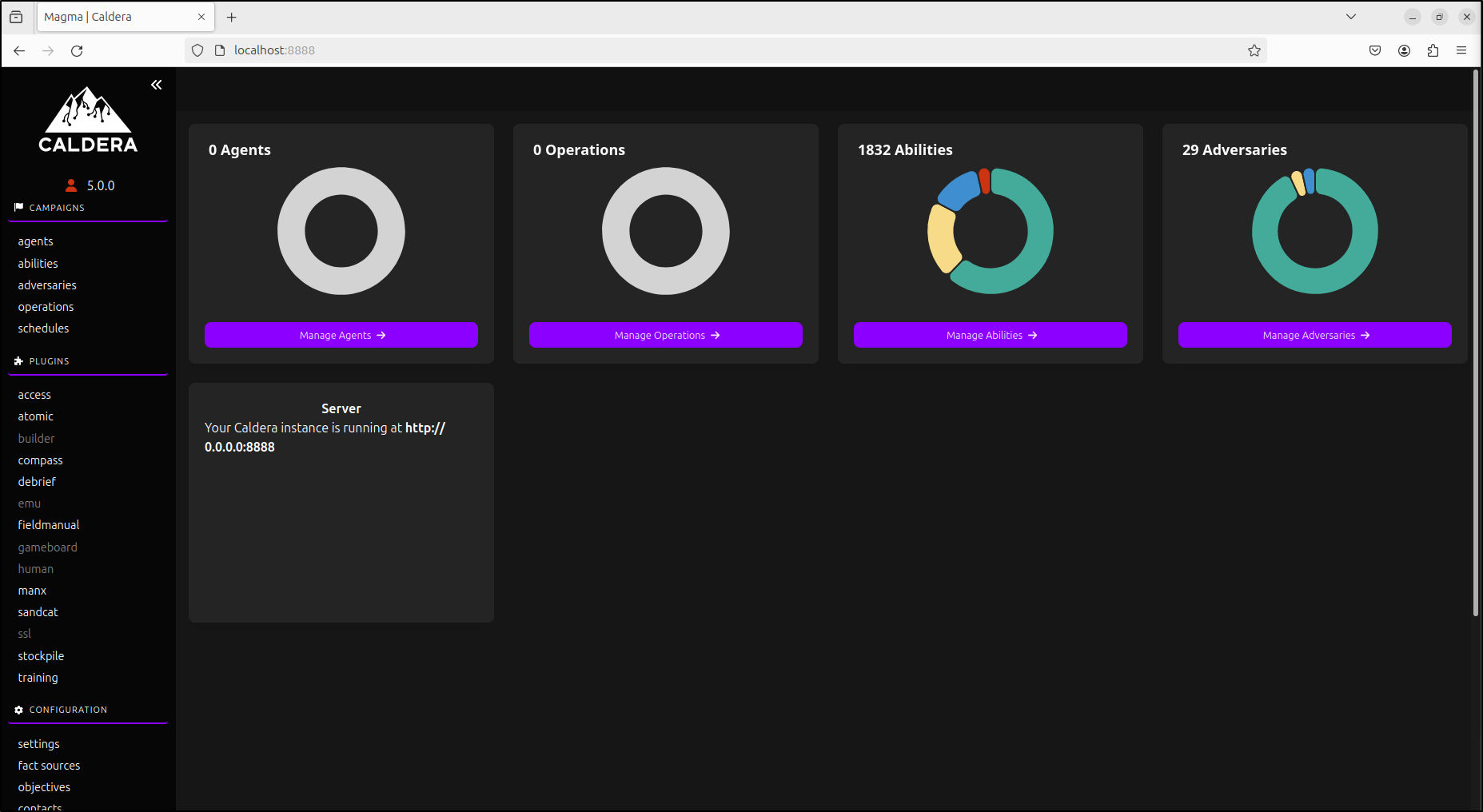

The original proof of concept first verified local login, then confirmed access from an authorised Ubuntu workstation on the same isolated network.

Remote access configuration

Older releases required edits to both conf/local.yml and the Magma frontend environment. Current releases removed the old VITE_CALDERA_URL requirement. Do not apply that legacy workaround unless the documentation for your pinned version explicitly requires it.

Installation checkpoint¶

Continue only when:

the service starts without unresolved dependency errors;
the web interface opens from an authorised management host;
credentials and API tokens remain protected;
server time and client time are synchronised; and
a working-caldera-server snapshot is available.
